DYMAT® MONO CLEAR FRONTSHEET
Mono layer transparent and extra thick
dyMat® FS Clr HDPYE MONO are transparent frontsheets with a single PET layer and are the ideal solution to be employed instead of glass in lightweight flexible photovoltaics. They combine the properties of polyester film with those of a special UV coating applied in a high-tech EB curing production process. dyMat® frontsheets have been specifically developed to guarantee an extra high UV and hydrolysis resistance together with outstanding anti-scratch and anti-abrasion properties. dyMat® mono clear frontsheets can be supplied with the UV coating in a matt anti-glare finish for output enhancement or with gloss finish and they are suitable for 1500VDC applications.

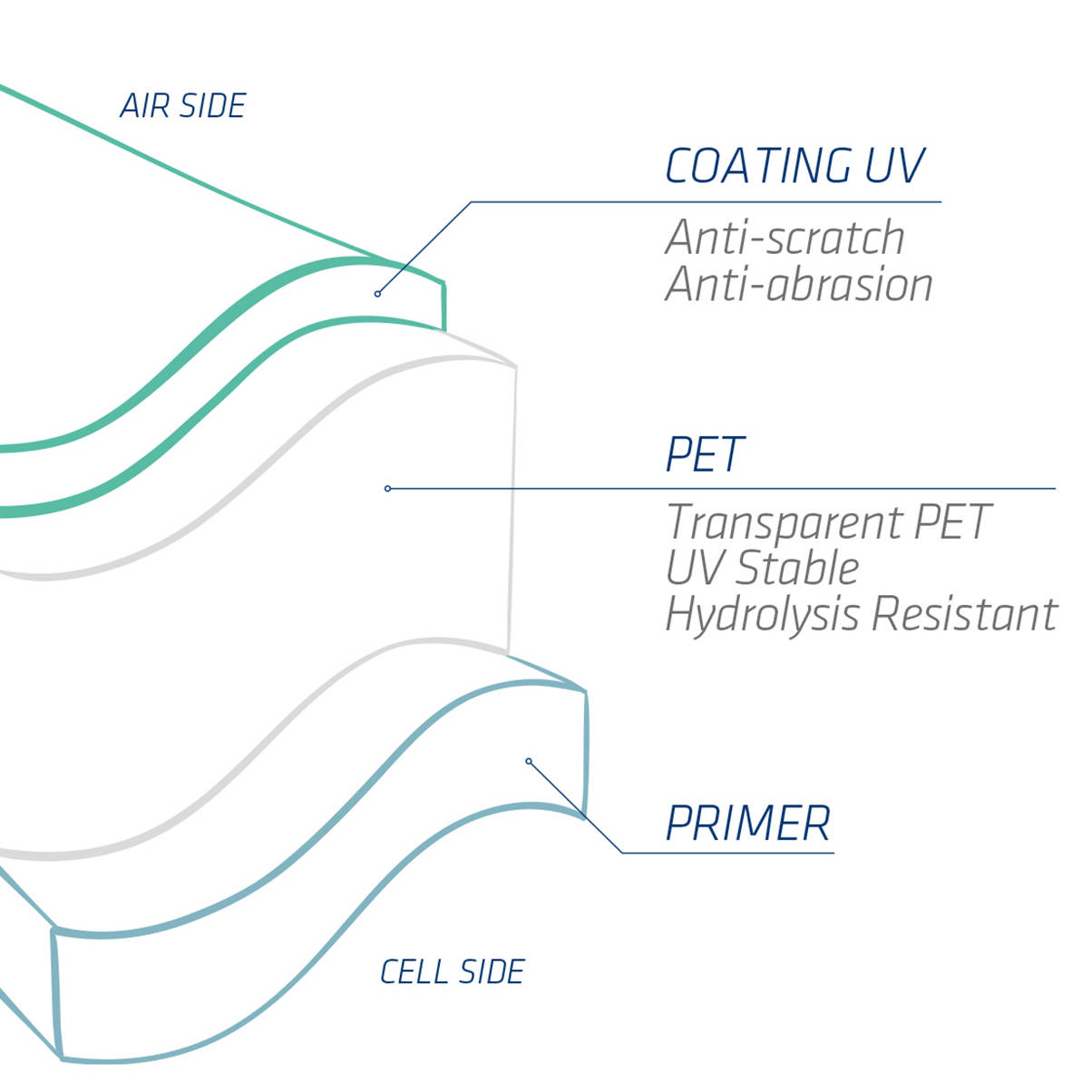

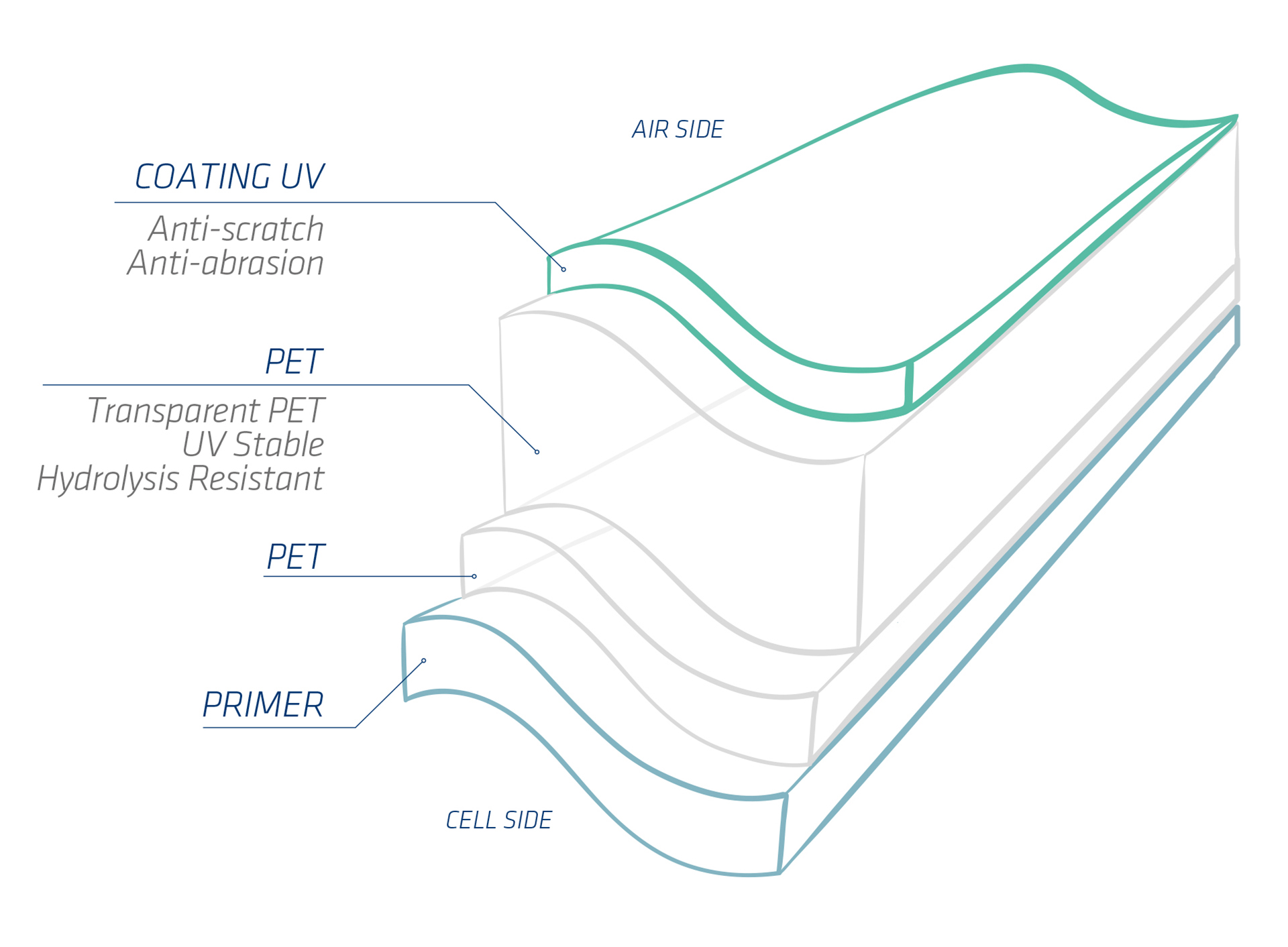

| PRODUCT NAME | STRUCTURE: AIR SIDE /CELL SIDE | THICKNESS IN MICRON | Main Features |
|---|---|---|---|
| Clr FS HDPYE MONO G | Coating UV/PET/Primer | 10/300/50 | Mono layer, glossy transparent, extra thick |
| Clr FS HDPYE MONO | Coating UV/PET/Primer | 10/300/50 | Mono layer, matt transparent, extra thick |
The polyester film inside dyMat® Clr FS HDPYE backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).
| FEATURES |
|---|
| ANTI SCRATCH |
| ANTI ABRASION |
| UV STABLE |
| HYDROLYSIS RESISTANT |
| ANTI GLARE |
| ENGINEERED ADHESIVE |
| MATT FINISHING FOR HIGHER OUTPUT |
Notes and certifications
Other thicknesses on request
Cut sheets (sizes, drills etc.) according to customer’s specifications
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable
dyMat® is a Coveme registered trademark
dyMat® Clear Frontsheets products are UL registered and TÜV RHEINLAND and TÜV SUD certified.
