DyBond® NMN
PRE-PREG PRODUCTS WITH B-STAGE RESIN (NMN)

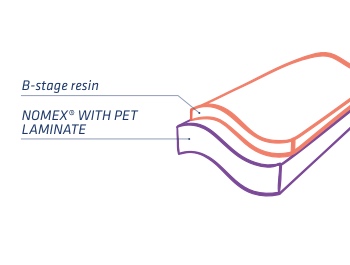

Coveme DyBond® products are flexible insulating materials with a B-Stage (semi polymerized) resin coating. During our coating process the resin is first applied onto the substrate then, by controlled heating, the polymerization is started bringing the resin to a dry-to-touch condition, stable but not fully polymerized. The substrates used for DyBond® NMN are 3-plies laminates of Nomex® and PET.
DyBond® NMN is used as electrical insulation up to class H 180°C, mainly in dry transformers.
The resin can be of various colours, applied in various grammages, on one or both sides, and on the full surface or with a diamond pattern. DyBond® B-Stage pre-pregs can be used by the manufacturer as any conventional insulating material. In the curing process of the final equipment the resin melts filling any possible non-uniformity before fully solidifying into a cross-linked stage (C-Stage).
Coveme insulating materials are UL Underwriters Laboratories certified and recognized by all major certification bodies worldwide.
Moreover the IATF certifies Coveme as qualified supplier specifically for the automotive industry.
Notes and certifications
Available Widths 4-1830mm
Thermal Classes up to H:180°C
UL certified
IATF certified
DyBond® is Coveme's registered trademark.
Nomex® is DuPont’s registered trademark
