DYMAT® AHDPYE SPV P/C

Extra moisture Barrier with Aluminium

GREEN BLACKSHEET

dyMat® AHDPYE SPV P*/C is an Aluminium based backsheet with an extra low WVTR and a superior moisture protection for humidity sensitive solar cells. The right solution for heterojunction cells, thin film (CIGS, a-SI and Perovskite), flexible and also c-SI PV modules used in floating installation where resistance to high temperature and humidity is fundamental.

PRODUCT FEATURES:

  • Integrated Aluminium layer
  • Extra low WVTR
  • Enhanced UV protection
  • Black version available
  • Extra high reflectivity option
  • Insulation up to 1500 VDC

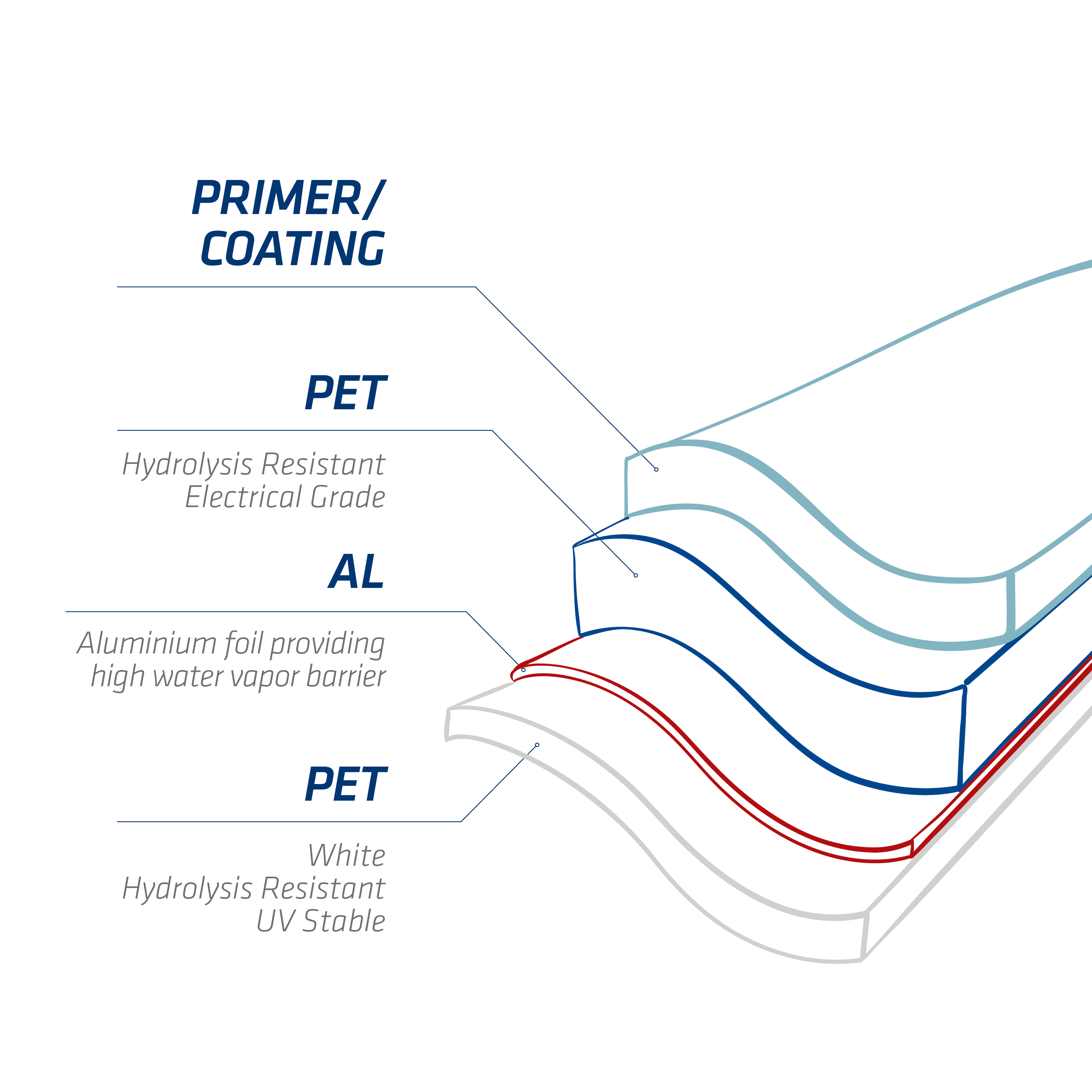

PRODUCT NAME STRUCTURE: AIR SIDE /CELL SIDE THICKNESS IN MICRON Main Features
AHDPYE SPV P*/C PET/Alu /PET /Primer Polyolefin or coating 330 Aluminium layer, suitable for 1500 VDC

The polyester film inside dyMat® AHDPYE backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).

ADDITIONAL UPGRADES
For each backsheets additional treatments are available to enhance the pv module performance

TYPE OF UPGRADE UPGRADE CODE
Extra UV protection on cell side LO
Super high reflectivity SHR
Black polyester on air side and black on cell side BK
Black on cell side LBK
Black high reflectivity BKHR

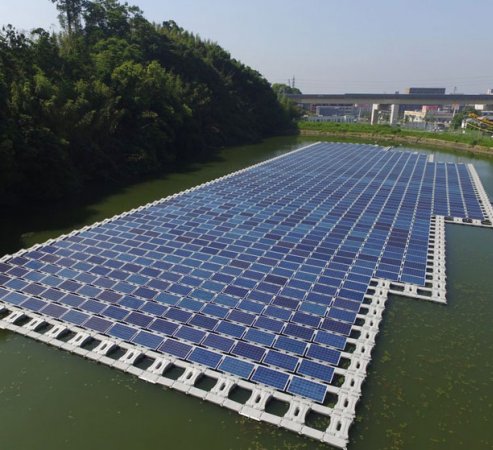

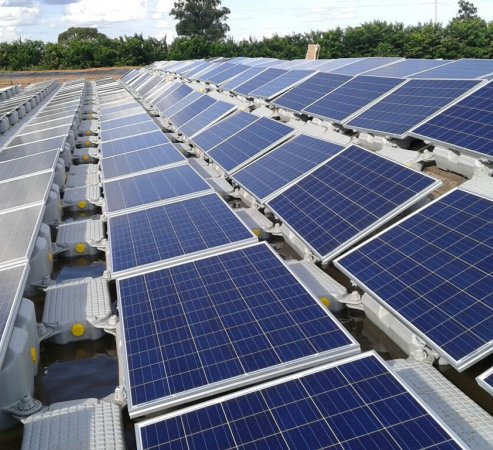

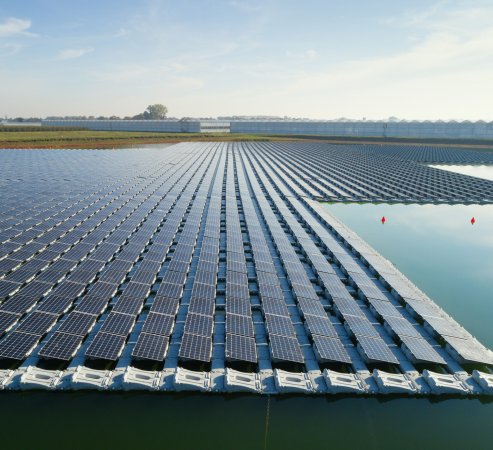

DYMAT FOR FLOATING SYSTEMS
  • AHDPYE SPV P*/C
Floating modules

Notes and certifications

Other thicknesses on request
Primer colours available: W (white), BK (black).
Cut sheets (sizes, drills etc.) according to customer’s specifications
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable
dyMat® is a Coveme registered trademark
dyMat®AHDPYE products are UL registered and TÜV RHEINLAND and TÜV SUD certified.
