DYMAT®CLEAR FRONTSHEET MONO
Transparent, Mono layer
dyMat® transparent frontsheets are the ideal solution to be employed instead of glass in lightweight flexible
photovoltaics. They combine the properties of a high grade UV stable polyester film with those of a special
UV coating applied in a high-tech EB curing production process. dyMat® frontsheets have been specifically
developed to guarantee an extra high UV and hydrolysis resistance together with outstanding anti-scratch
and anti-abrasion properties. dyMat® Clear PET Frontsheets are suitable for 1000 and 1500 VDC and they can
be supplied with the UV coating in a matt anti-glare finish for output enhancement and traffic safety .
The dyMat® Clear Frontsheet are available with the 33% of recycled PET

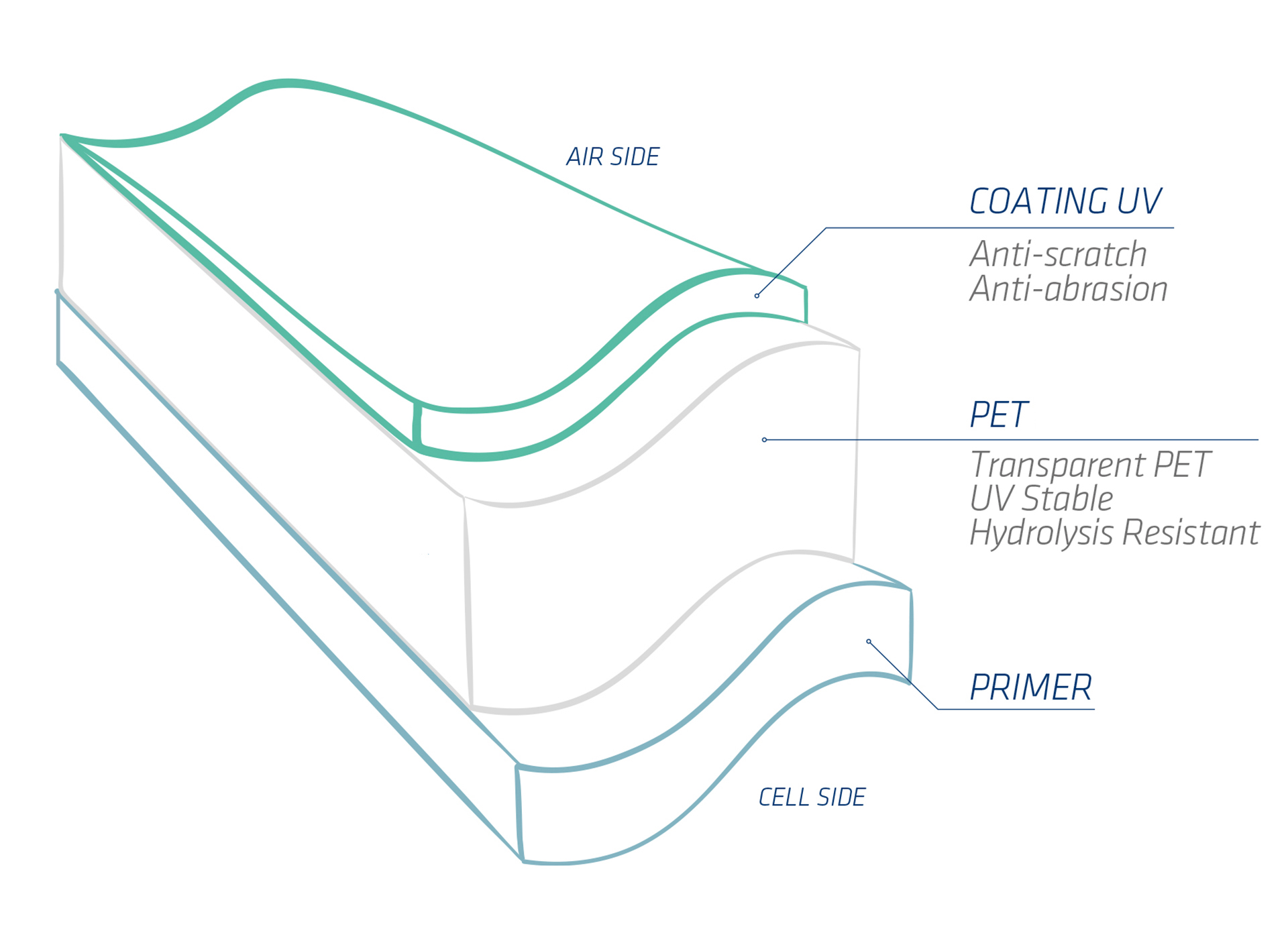

| PRODUCT NAME | STRUCTURE: AIR SIDE /CELL SIDE | THICKNESS IN MICRON | Main Features |
|---|---|---|---|
| Clr FS PYE MONO | Coating UV/ PET/Clear Primer or Coating | 270 | Matt transparent |
The polyester film inside dyMat® Clr FS PYE MONO backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).
| FEATURES |
|---|
| ANTI SCRATCH |
| ANTI ABRASION |
| UV STABLE |
| HYDROLYSIS RESISTANT |
| ANTI GLARE |
| ENGINEERED ADHESIVE |
| MATT FINISHING FOR HIGHER OUTPUT |
Notes and certifications
Other thicknesses on request
Cut sheets (sizes, drills etc.) according to customer’s specifications
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable
dyMat® is a Coveme registered trademark
dyMat® Clear Frontsheets products are UL registered and TÜV RHEINLAND and TÜV SUD certified.
