DYMAT® PYE MONO
Best selling and Single layer
This new generation of backsheet from Coveme is based on a single PET layer (Mono Layer) that features superior resistance to UV and hydrolysis thanks to its bulk technology. Contrarily to the co-extrusion technology, the bulk technology features the UV protection all across the whole thickness of the single PET layer. Coveme’s monolayer backsheet shows excellent performances in the combined UV+DHT tests as well as it features an intrinsic high reflectivity. The dyMat® PYE MONO C is available with white, black or black high reflectivity coating.
The range also includes a version of the revolutionary dyMat® ECO range composed of 33% recycled polyester (rPET) coming from post-consumer waste recycling. The dyMat® ECO PYE r33 MONO L PLUS
is the very first backsheet made with rPET availabe on the market today.
| PRODUCT NAME | STRUCTURE: AIR SIDE /CELL SIDE | THICKNESS IN MICRON | Main Features |
|---|---|---|---|
| dyMat® ECO PYE r33 MONO L PLUS |
PET/Primer | 158/50 | With 33%of rPET |
| PYE MONO L PLUS | PET/Primer | 158/50 | Best selling for 1000 vdc |
| PYE MONO L | PET/Primer | 170/100 | High reflectance |
| PYE MONO O PLUS | PET/PO | 125/60 | Poliolefin on primer side |

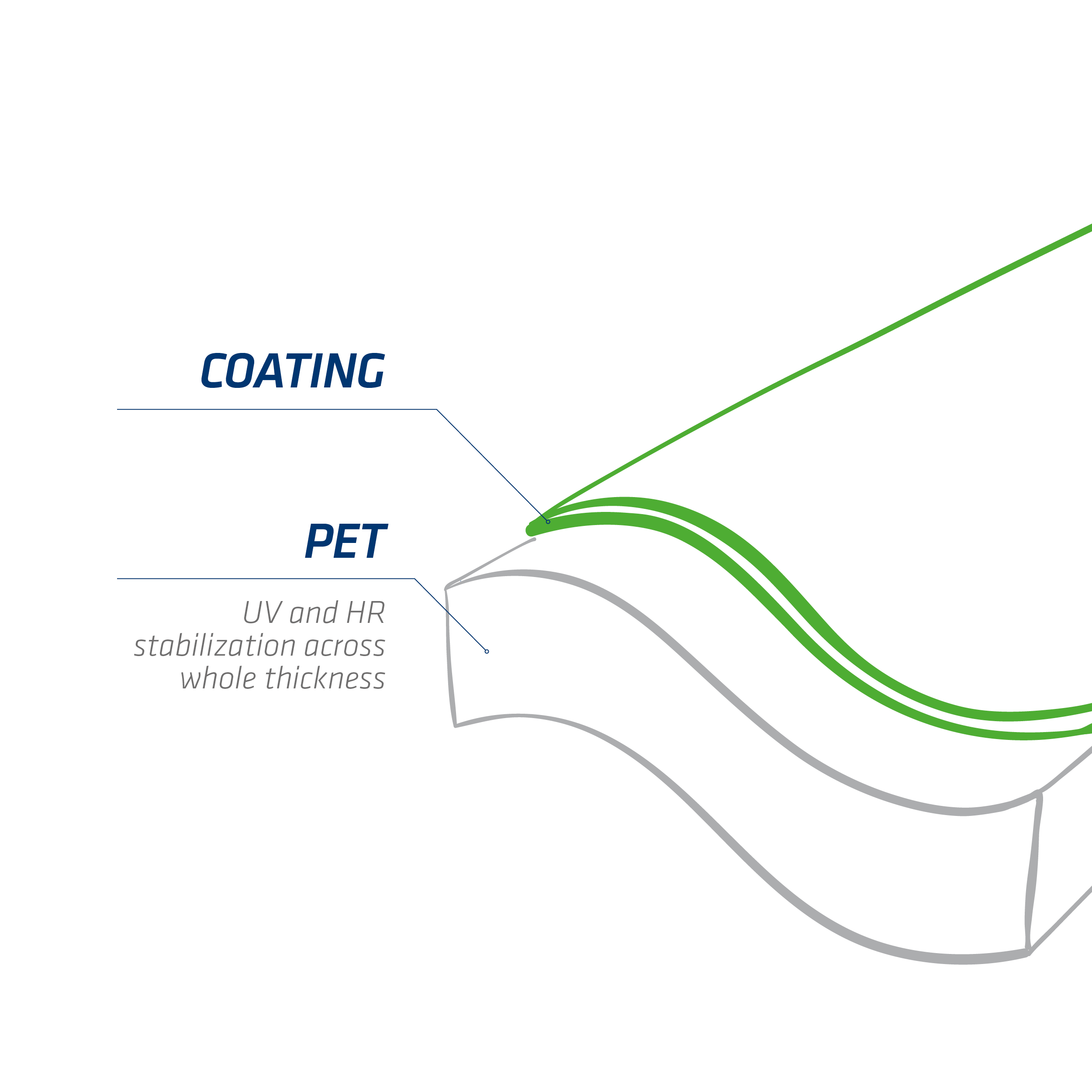

| PYE MONO C | PET/Coating | 162/4 | Coating on primer side |
The polyester film inside dyMat® PYE MONO backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).
ADDITIONAL UPGRADES
For each backsheets additional treatments are available to enhance the pv module performance
| TYPE OF UPGRADE | UPGRADE CODE |
|---|---|
| Extra UV protection on cell side | LO |
| High humidity barrier | LD |
| High humidity barrier + UV protection | LDO |
| Super high reflectivity | SHR |
| Black on cell side | LBK |
| Black high reflectivity (only for PYE MONO C) | BKHR |
Notes and certifications
Other thicknesses on request
Primer colours available: W (white), BK (black).
Cut sheets (sizes, drills etc.) according to customer’s specifications
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable
dyMat® is a Coveme registered trademark
dyMat® PYE MONOproducts are UL registered and TÜV RHEINLAND and TÜV SUD certified.
