DYMAT®HDPYE CLEAR LDO

Transparent, Barrier Primer with mesh grid

Coveme’s dyMat® transparent high grade PET backsheets are employed as an alternative to glass in Bifacial modules or where transparency is required (eg. greenhouses). The polymers, primer and adhesives specifically developed
for these products provide an extra high resistance to UV and humidity. dyMat® Clear PET Backsheets are suitable
for 1500 VDC and have a proven track record being employed in the world’s first bifacial 1500V installation.
The dyMat ® Clear backsheet is also available with the 33% of recycled PET

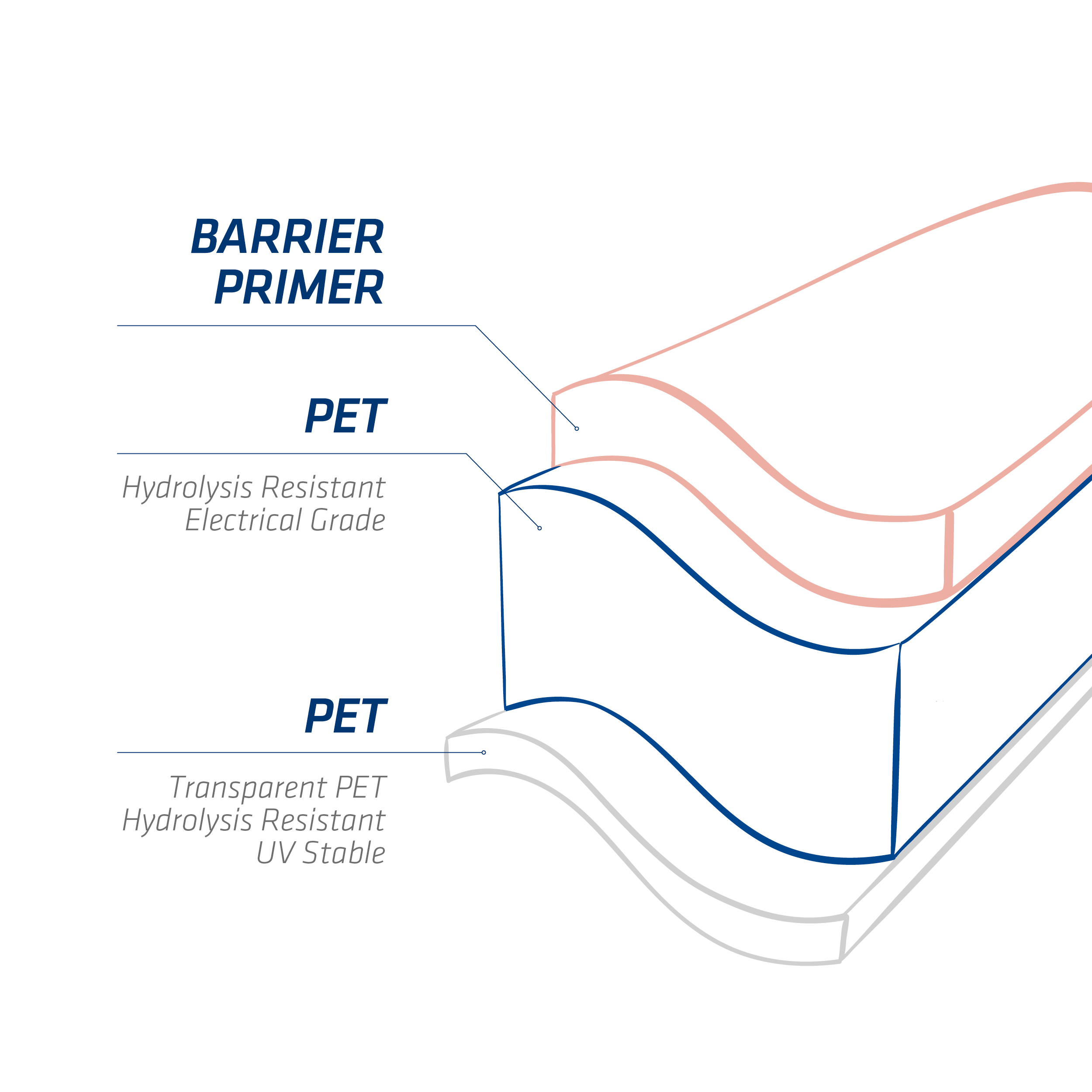

PRODUCT NAME STRUCTURE: AIR SIDE /CELL SIDE THICKNESS IN MICRON Main Features
Clr HDPYE PET/PET/ Clear Primer 350 Totally stansparent
Clr HDPYE F PET/PET/Clear Coating 310 Totally transparent

The polyester film inside dyMat® Clr HDPYE backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).

FEATURES
HIGH MECHANICAL RESISTANCE
UV STABLE
HYDROLYSIS RESISTANT
ENGINEERED ADHESIVE
HIGHER OUTPUT
EXTENDED LIFE TIME UP TO 30 YEARS

DYMAT HDPYE CLEAR
  • dyMat® Clr HDPYE LDO

OUTPUT INCREASING OPTIONS:
dyMat® Selective:

Optional white or black grid incorporated in the backsheet that turns the space in between the cells and the borders into highly reflective area for significant output improvement. The grid layout is defined according to customer's cell shape and size.

Notes and certifications

Other thicknesses on request.
Cut sheets (sizes, drills etc.) according to customer’s specifications.
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable.
dyMat®HDPYE is a Coveme registered trademark
dyMat®HDPYE products range are UL registered and TÜV RHEINLAND  and TÜV SUD certified.
