DYMAT® HDPYE CLEAR

Totally transparent Extra thick

GREEN BLACKSHEET

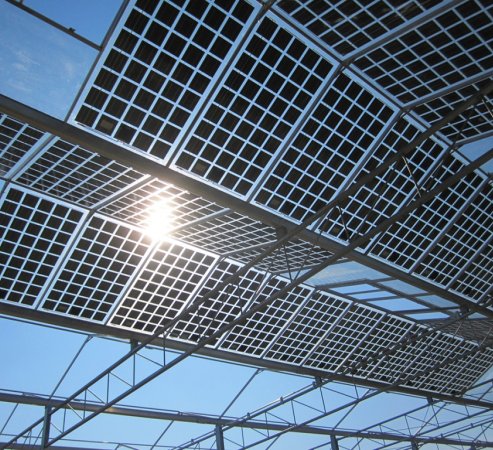

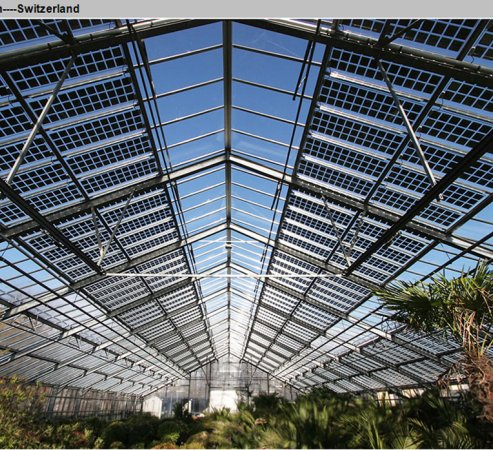

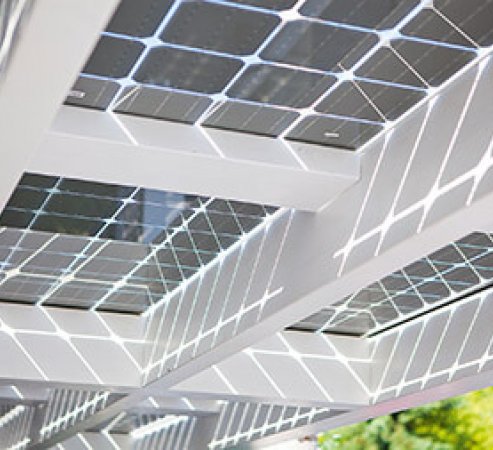

Totally transparent high grade polyester backsheets to be employed as an alternative to glass in Bifacial modules or in other module types for installations where transparency is required (eg. greenhouses). The polymers, primer and adhesives specifically developed for these products provide an extra high resistance to UV and humidity.
dyMat® Clr HDPYE for 1500 VDC features a thicker inner PET layer in order to comply with the new IEC rules for 1500V insulation and has a proven track record being employed in the world’s first bifacial 1500V installation.

PRODUCT NAME STRUCTURE: AIR SIDE /CELL SIDE THICKNESS IN MICRON Main Features

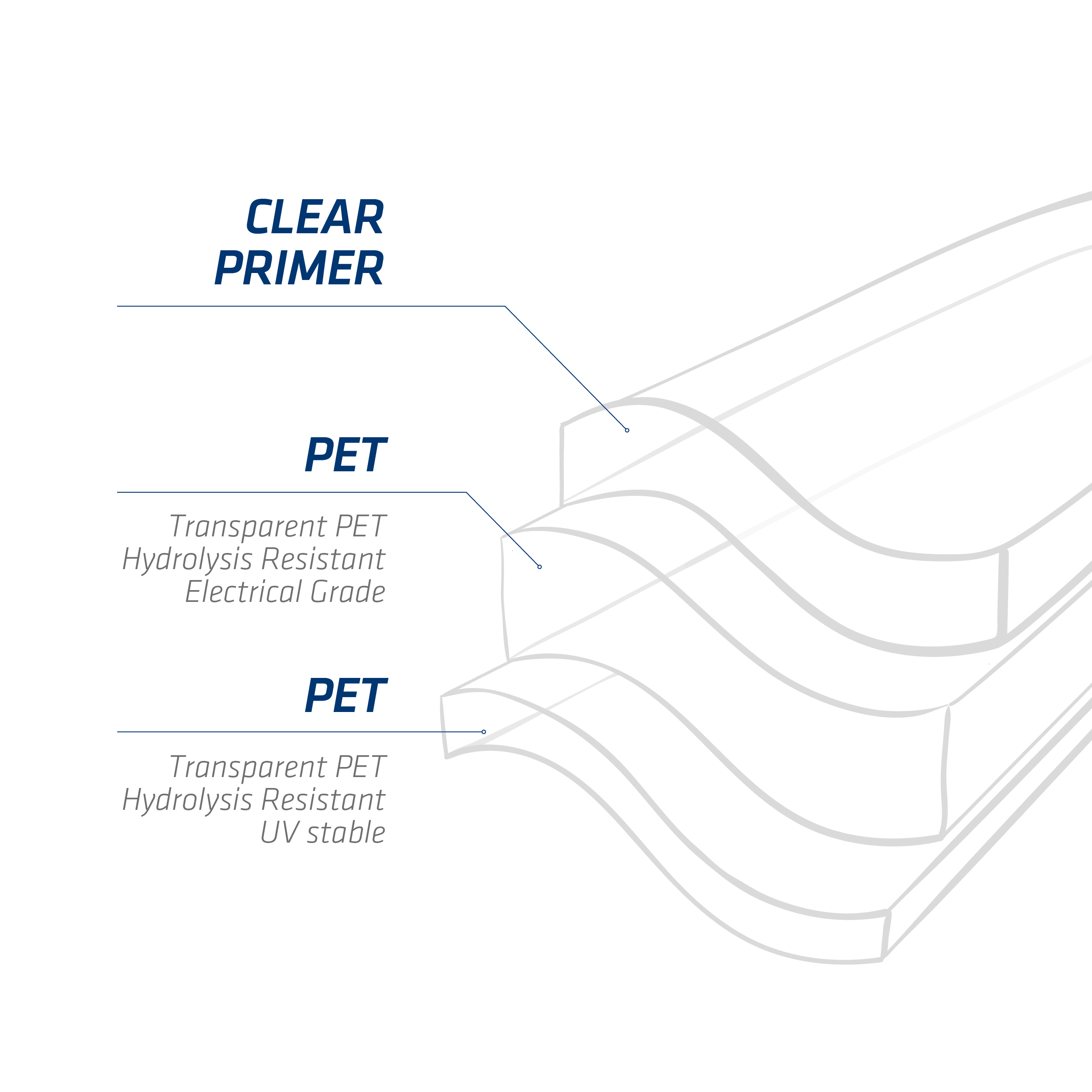

Clr HDPYE PET/PET/ Clear UV Primer 350 Totally stansparent

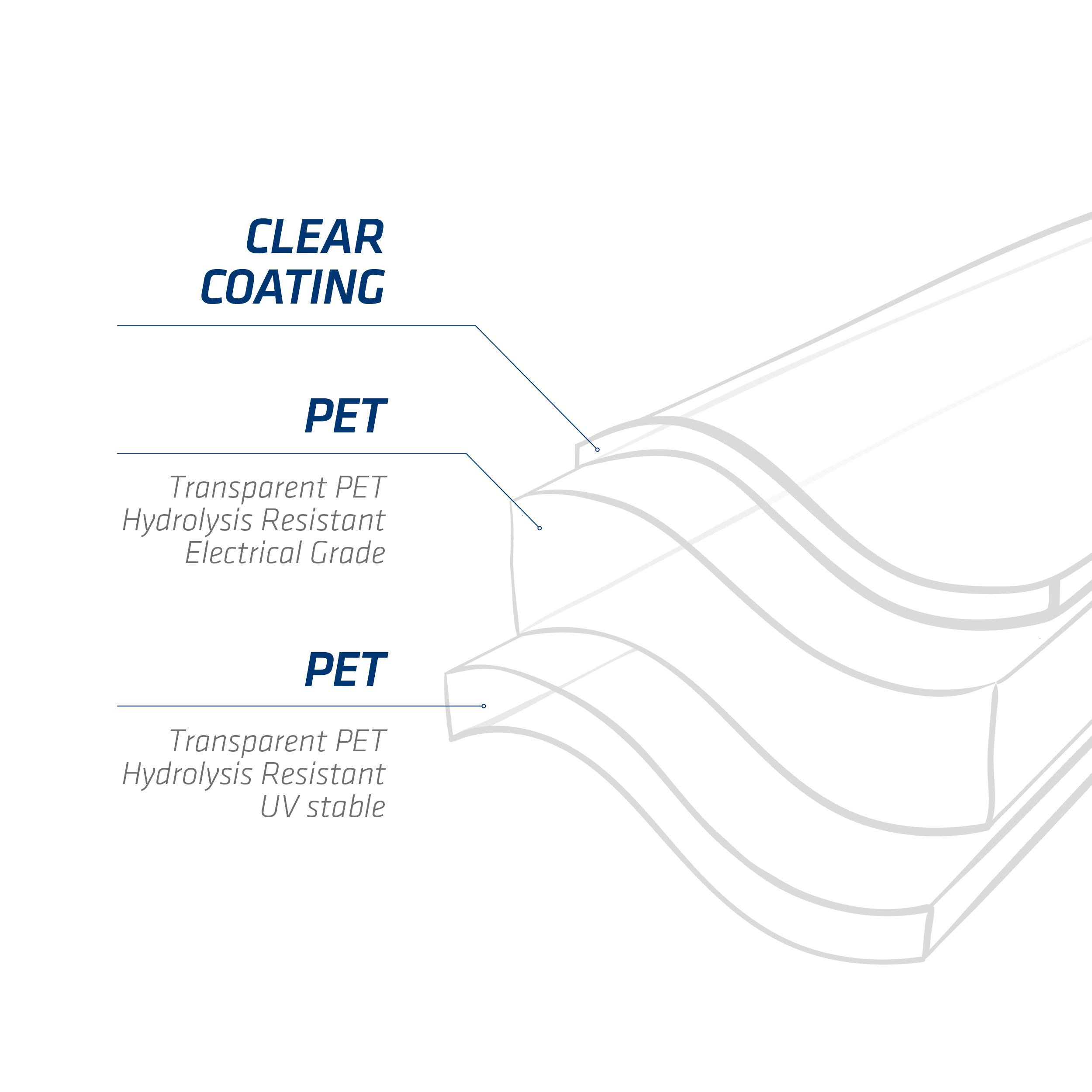

Clr HDPYE F PET/PET/Coating 310 Totally transparent

The polyester film inside dyMat® Clr HDPYE backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).

FEATURES
HIGH MECHANICAL RESISTANCE
UV STABLE
HYDROLYSIS RESISTANT
ENGINEERED ADHESIVE
HIGHER OUTPUT
EXTENDED LIFE TIME UP TO 30 YEARS

DYMAT HDPYE CLEAR

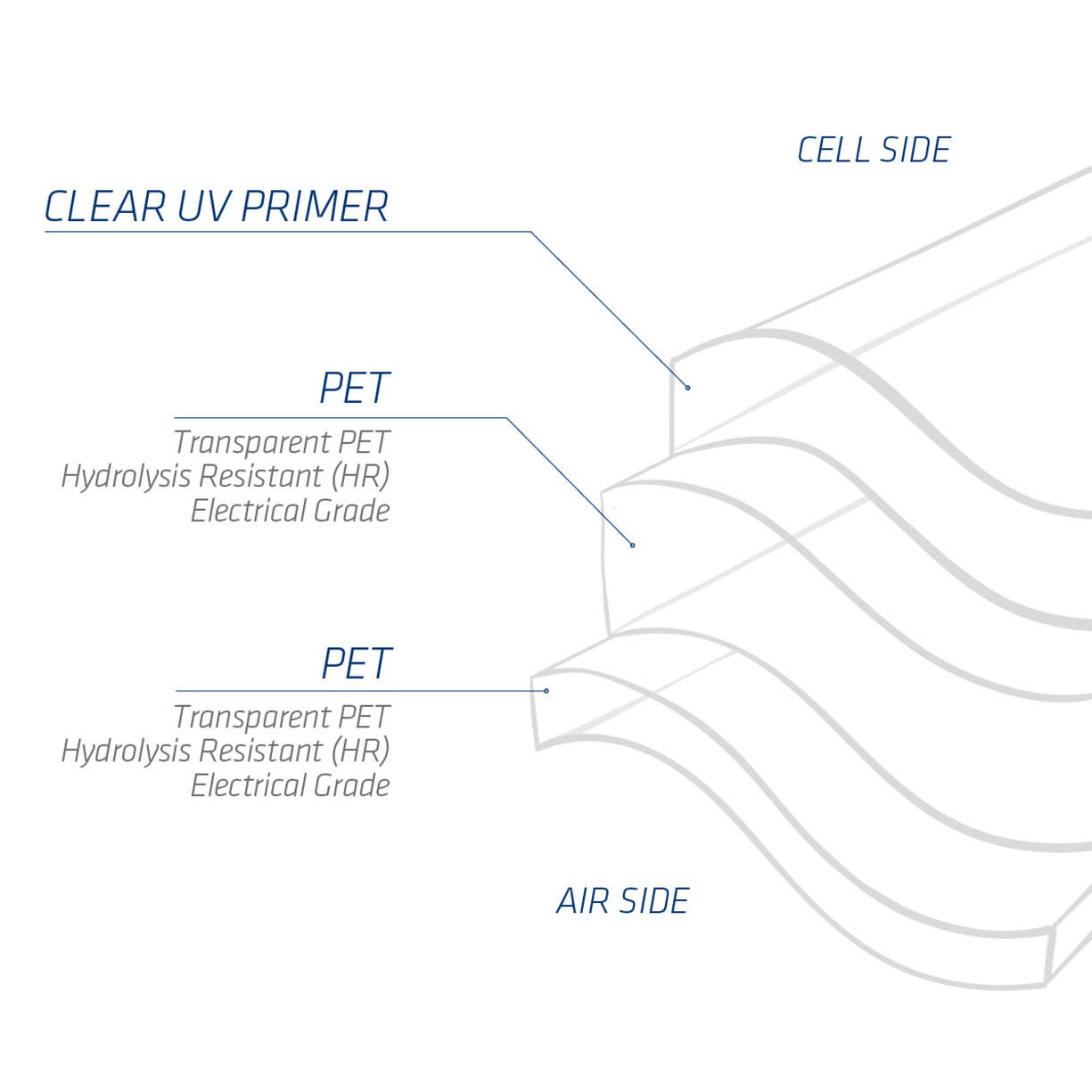

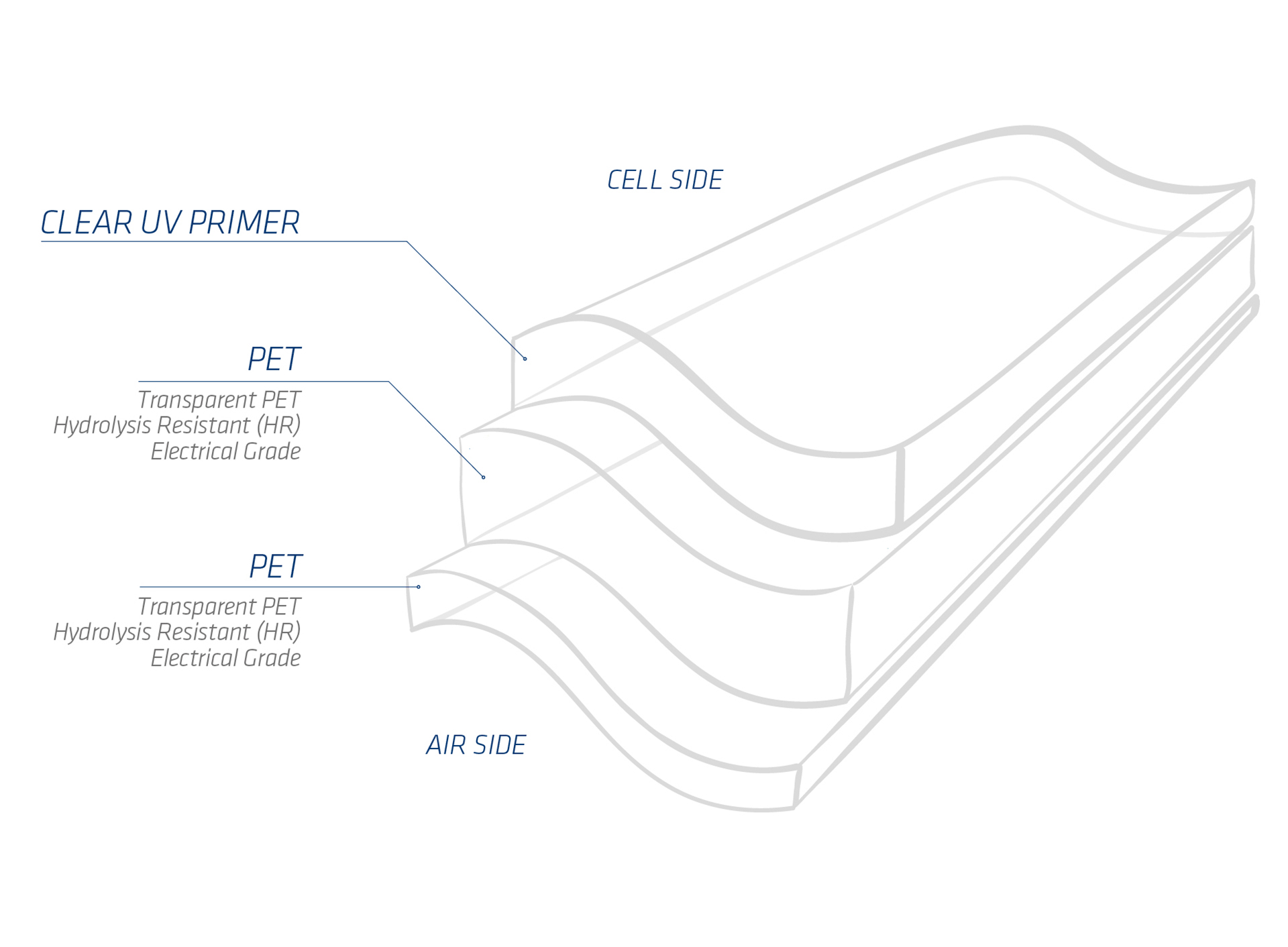

  • dyMat® Clr HDPYE
Clr HDPYE F

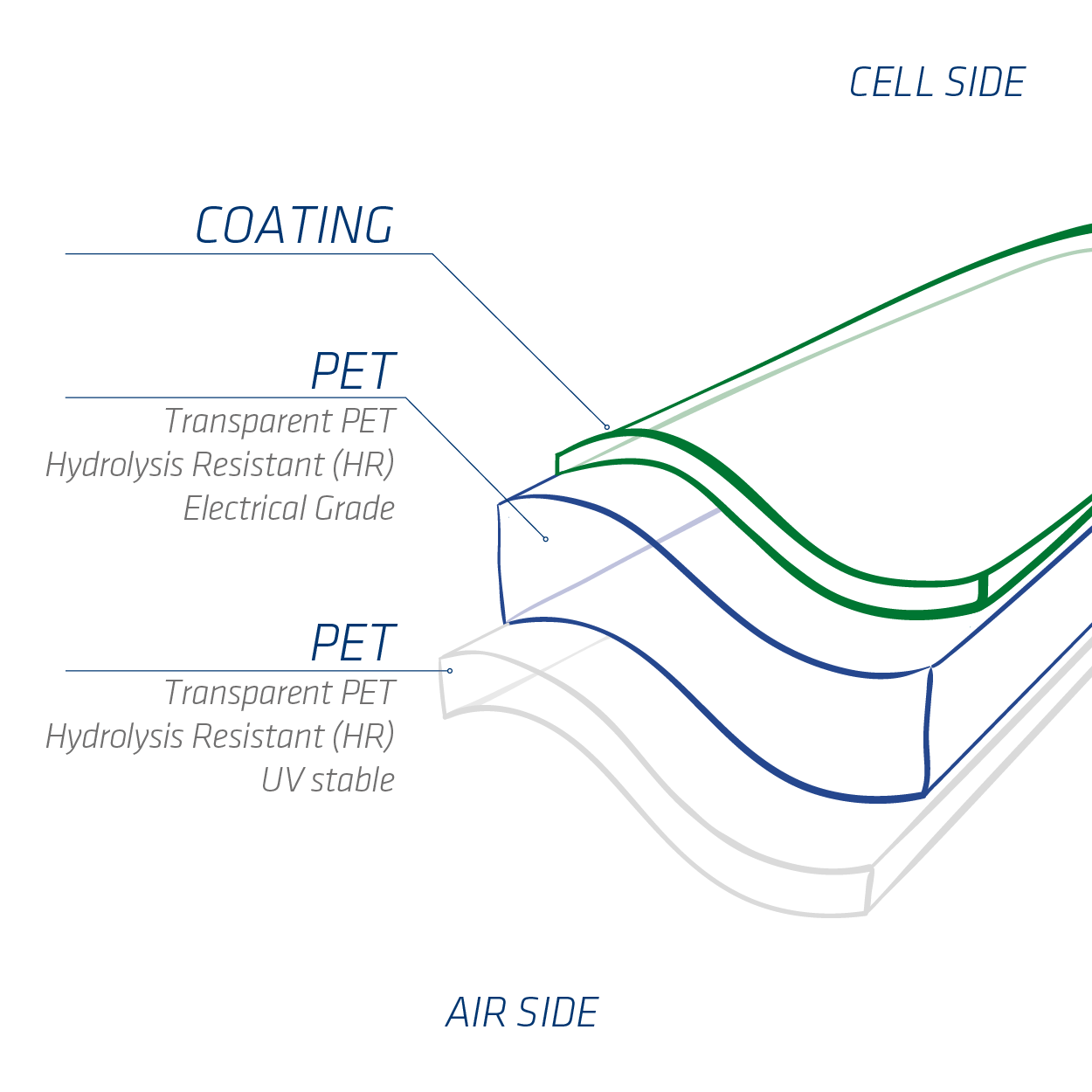

  • Clr HDPYE F
OUTPUT INCREASING OPTIONS:

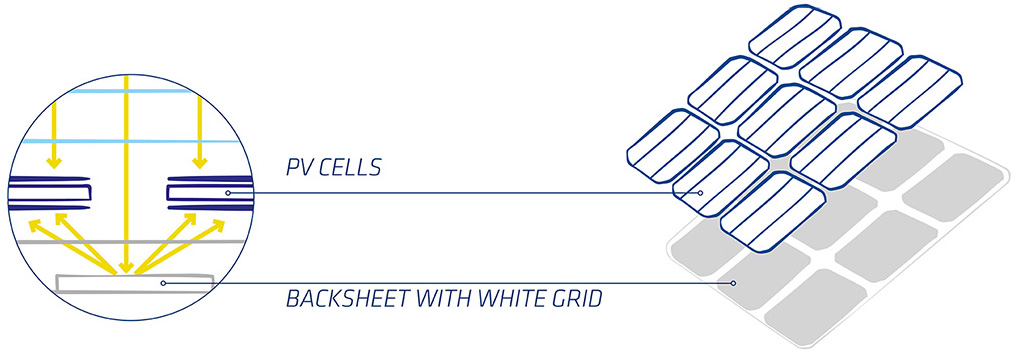

dyMat® Selective:

Optional white or black grid incorporated in the backsheet that turns the space in between the cells and the borders into highly reflective area for significant output improvement. The grid layout is defined according to customer's cell shape and size.

dyMat® HMirror LR:

Optional reflective laminate that can be used for retro-fitting of Bifacial PV installations to increase the albedo value of ground reflectivity and therefore the final module output.

Notes and certifications

Other thicknesses on request.
Cut sheets (sizes, drills etc.) according to customer’s specifications.
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable.
dyMat®HDPYE is a Coveme registered trademark
dyMat®HDPYE products range are UL registered and TÜV RHEINLAND  and TÜV SUD certified.
