DYMAT® PYE SPV CBK SHR
Black Super High Reflectivity
dyMat® PYE SPV CBK SHR (Super High Reflectivity) backsheet is a PET-based laminate with a black coating that delivers superior performance with over 80% reflectivity, specifically designed for residential rooftop PV installations up to 1000 VDC.
With this high reflectivity, dyMat® PYE SPV CBK SHR significantly increases power output, delivering up to 4 watts more compared to conventional black high-reflectivity backsheets, and with just a 1-watt difference compared to white backsheets, making it a highly efficient choice for high-performance PV systems.

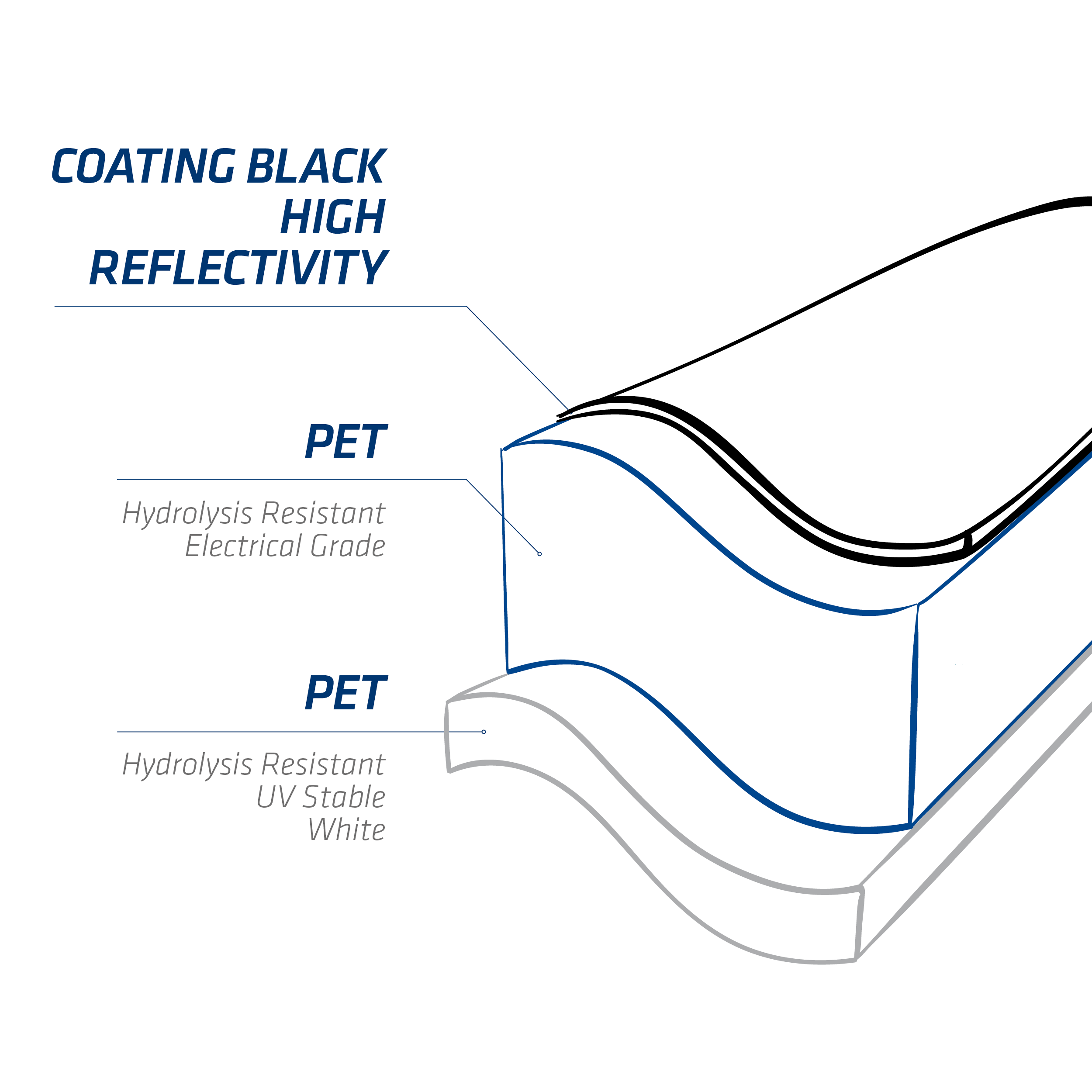

The air and inner layers consist of white high-reflectivity PET, while the cell side is treated with a special black coating which provides extremely high bonding to encapsulant and high reflectance with a black look.
dyMat® PYE SPV CBK SHR also boasts excellent resistance to atmospheric agents and long-term resistance to hydrolysis of both components and adhesives.
The dyMat® PYE SPV CBK SHR backsheet is also available with 33% recycled PET.
| PRODUCT NAME | STRUCTURE: AIR SIDE /CELL SIDE | THICKNESS IN MICRON | Main Features |
|---|---|---|---|
| PYE SPV CBK SHR | PET/PET/Black Coating SHR | 192 | Black coating, super high reflectivity |
The polyester film inside dyMat® PYE SPV CBK SHR backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).
Notes and certifications
Other thicknesses on request
Primer colours available: W (white), BK (black).
Cut sheets (sizes, drills etc.) according to customer’s specifications
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable
dyMat® is a Coveme registered trademark
dyMat® HDPYE product is UL registered and TÜV SUD certified
