DyTerm® K

Nomex® with Kapton® laminates

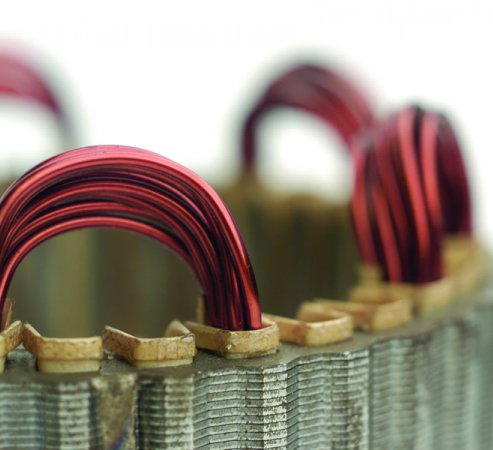

Coveme DyTerm® K insulating products are produced by the coupling of Nomex® aramid paper with Kapton® polyimide. Nomex® layers stick firmly to the Kapton® by appropriate adhesives. DyTerm® K laminates are a highly performing solution for the insulation of electric machines with working tem­peratures up to 200°C. The presence of films enhances the mechanical, physical and dielectrical properties of the laminate. In rotating machines, DyTerm® K is used in slot closure and insulation, as well as to separate phases on the heads of the windings. In transformers and electrical static equipments, DyTerm® K is used as interlayer insulating material.

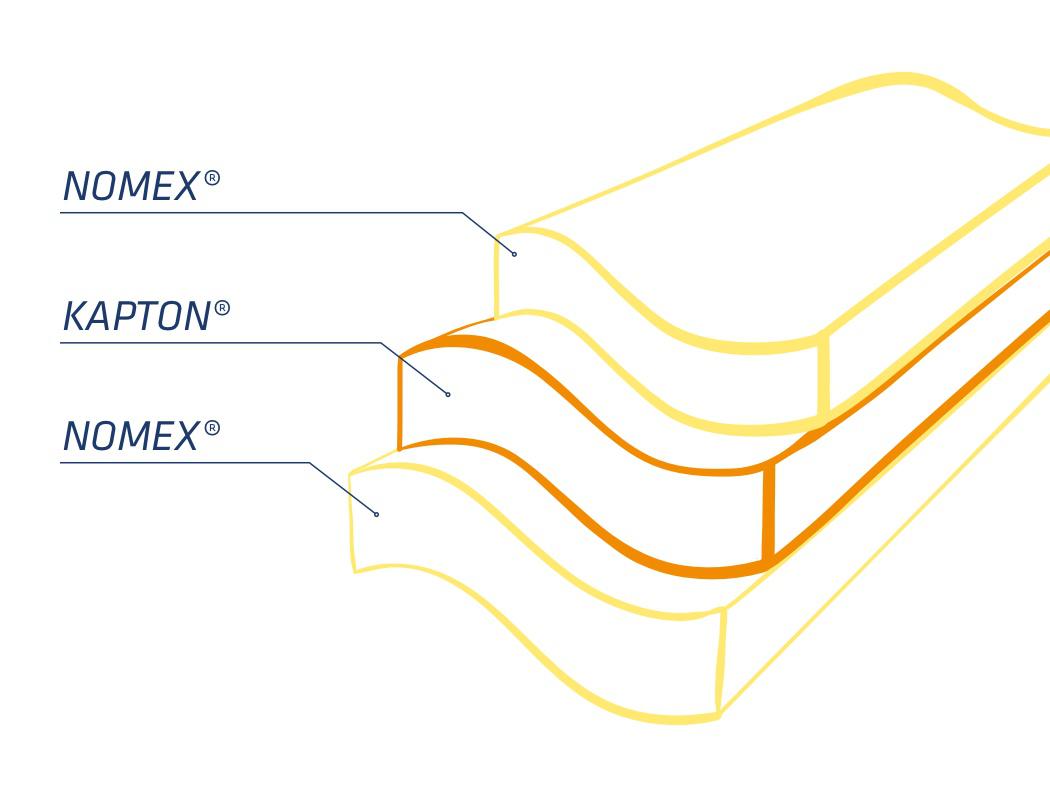

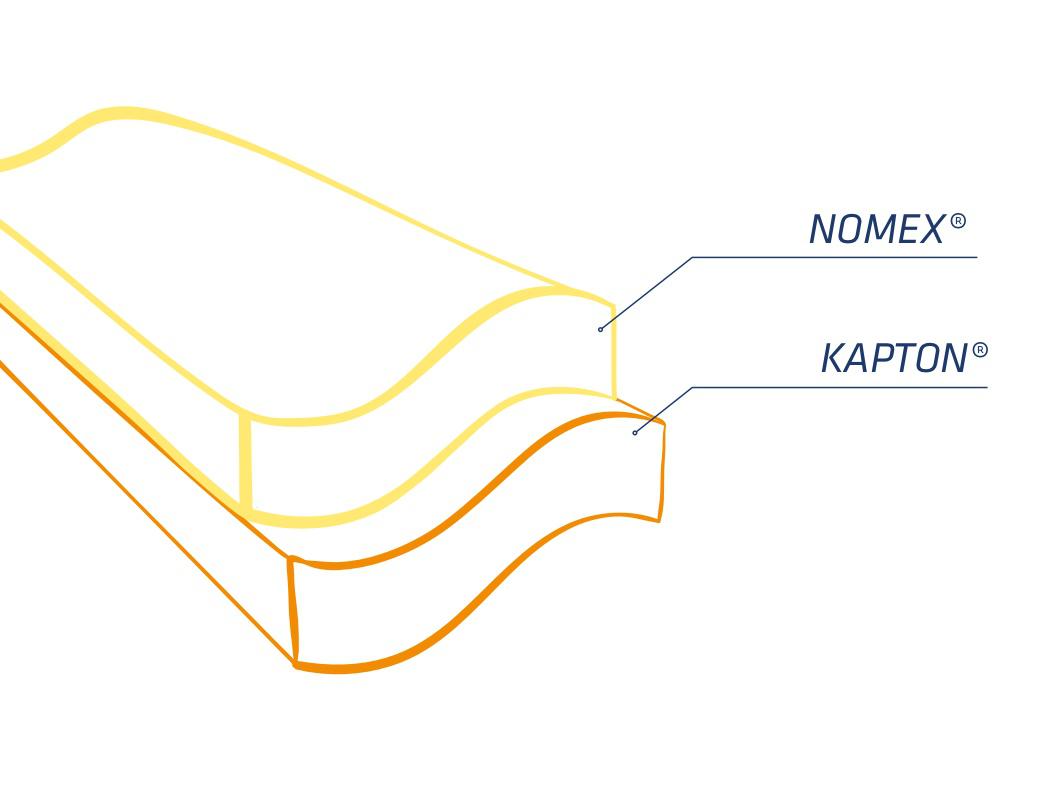

Coveme DyTerm® laminates are available as two plies Nomex® /Kapton® and three plies version Nomex® / Kapton®/ Nomex® laminate. For both versions different thicknesses of Nomex® and Kapton® are available.

Coveme insulating materials are UL Underwriters Laboratories certified and recognized by all major certification bodies worldwide.
Moreover the IATF certifies Coveme as qualified supplier specifically for the automotive industry.



IATF certified company
UL
DuPont Nomex distributor
DuPont Nomex qualified laminator
PRODUCT NAME STRUCTURE THERMAL CLASS THICKENESS IN MICRON
DyTerm® NSK Nomex®/Kapton® Up to 200°C 70-500
DyTerm® NDK Nomex®/Kapton®/Nomex® Up to 200°C 70-500
  • DyTerm® NDK
  • DyTerm® NSK

Notes and certifications

Available Widths 4-1830mm
Thermal Classes up to 200°C
Available Thickness 70-500μm
UL and IATF certified
DyTerm K® is Coveme's registered trademark
Nomex® is DuPont’s registered trademark
